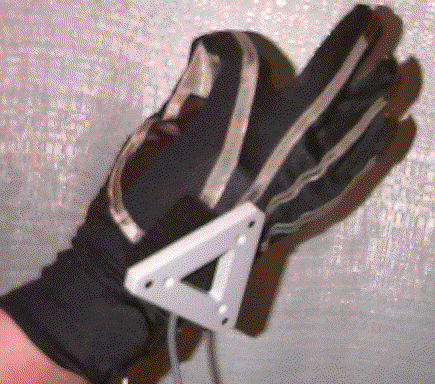

INTEGRATED FAKESPACE GLOVE & LOGITECH TRACKER IMAGE

No complicated gesture recognition algorithms are required, so it is easy to integrate Pinch into your application.

Sensors in each fingertip detect contact between the digits of either hand. You can use these gestures for a wide range of control and interactive functions. The gestures are not dependent on individual hand geometry Pinch never requires calibration.

The Pinch system includes a pair of gloves, interface electronics, user's guide, tracker mounts, and software. The RS-232 interface allows the Pinch to be used with virtually any workstation or personal computer. Gloves are also available individually in personal sizes and colors.

Gesture space:

Contact among any 2 or more digits i.e. left forefinger to right forefinger i.e. right thumb to right forefinger and right middle finger

The gloves detect when two or more digits come in contact. After the contact is verified it is sent to the host. The time since the last gesture is also sent.

Requires no calibration.

Communications:

Simple R5232 protocol communicates gesture information and delta time stamps. Dip-switch selectable baud rates including 9600 and 1 9200. Sample source code is available for either SOI or PC platforms.

Power:

1 2OVAC 11W to 9V wall transformer 2.1 mm Plug FCC Class A device

Tracking:

The glove does not provide its location in space. A mount compatible with both the Ascension and Polhemus electromagnetic trackers is provided. Custom tracker mounts are also available.

Pricing:

Glove system $2000
System includes electronics interface, basic driver software for either PC or SOI, User Guide, 2 tracker mounts for Ascension/Polhemus, 1 right handed medium black glove, 1 left handed medium black glove, 90 day limited warranty.

Additional gloves $100    Medium sized black right or left hand. Custom sizes, colors, designs as quoted



SUPERSCAPE SHOWED OFF VIRTUAL CHESS AT THE VRAIS CONFERENCE USING A LOW COST TRACKING GLOVE

Users were delighted with the very intuitive feel they experienced with this new low cost, accurate, 6DOF tracking glove. The Fakespace Pinch Glove and the Logitech Tracker have been integrated and are available as a replacement for the Logitech 3D mouse mechanism. In this configuration, the glove, replaces the programmable buttons on the mouse and can use the standard 3D Logitech drivers you may already support. If your customer should desire the full set of gestures the Pinch Glove is capable of, the tracker driver and standard glove driver must work simultaneously. The serial interface tracking glove is available in an assortment of sizes and is free of the hassles of calibration, unacceptable latency, or metal & display interference.

See more information about the Logitech tracker

C-2 SYNC DOUBLING EMITTERS
